MU Singlemode Fiber Optic Adapter for Fiber Patch Cords / Fiber Pigtails

MU Singlemode Fiber Optic Adapter for Fiber Patch Cords / Fiber Pigtails

Quick Details

1. Type: MTRJ Fiber optic coupler
2. Mode: Singlemode, Multimode
3. Structure: with flange, without flange
4. Sleeve: Ceramic sleeve, Bronze sleeve
5. Fiber core: Simplex
6. Housing: pmetal housing

Description:

Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Features:

1. Zirconia or Bronze Sleeve
2. Precision mechanical dimension
3. Low Insertion Loss, high Return loss
4. SC, LC, MU, MTRJ mode used pluggable tight locking structure
5. Standardization and Uniformization of Metal Casing

Application:

1. Equipment Test
2. CATV system, Optic LAN
3. Telecommunication Networks
4. Local Area Network
5. Optic instrumentation

Specification:

Type	SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB)	SM≤0.2dB, MM≤0.3dB
Repeatability(dB)	≤0.1dB
Mechanism Durability(500 cycles, dB)	≤0.2dB
Temperature Range	-40°C-+85°C
Material of sleeve	Zirconia or Bronze

Reliability testing:

Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB

Ordering Information:

SC/UPC-SC/UPC-SM-SX

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)

Step 4: Mode: Simplex, Duplex

Step 5: Sleeve: Ceramic, Bronze

Step 6: Housing material: Plastic, Metal

Packing:

25pcs per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport)

Product Tags:

fibre optic adapter



fiber optic to ethernet adapter

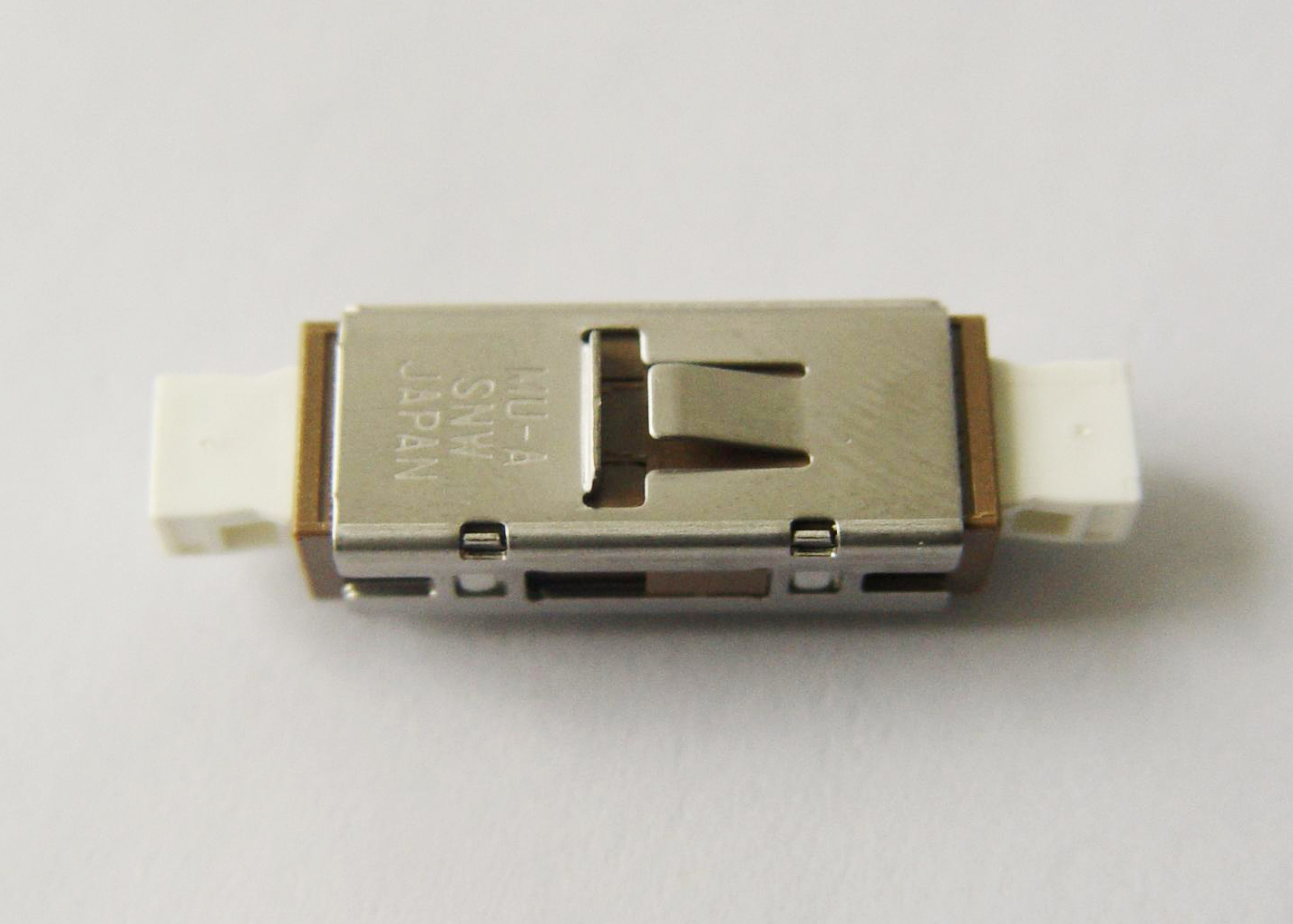

MU Singlemode Fiber Optic Adapter for Fiber Patch Cords / Fiber Pigtails Images
